Seal Saver

Custom-made protective boots for hydraulic cylinders. Send us your cylinder's measurements and a few photos, and we'll price one up.

Stop replacing cylinders. Protect them.

A Seal Saver is a flexible boot built to fit one cylinder. It covers the rod at full extension and concertinas as the rod moves, so dust, grit, slurry and chemical washes never reach the chrome or the seals.

  • Stops rod scoring, pitting and corrosion
  • Keeps grit and slurry away from the wiper and seals
  • Takes the knocks that would dent a bare rod
  • Fits with a screwdriver in about ten minutes, no strip-down
Request a quoteMore on sealsaver.com

Materials

Each boot is made in the material that suits the job. Tell us the environment and we'll recommend one.

Ballistic nylon
to 120 °C
Polyurethane-backed 1050 denier nylon. Shrugs off water, oil, sunlight and abrasion. The everyday choice for most machines.
Kevlar
to 315 °C
Silicone-coated Kevlar twill. Stronger and denser, and resists many chemicals and acids. Suits quarries and demolition.
Aluminised Kevlar
to 260 °C
An aramid blend aluminised on one face to reflect radiant heat, with excellent abrasion resistance.
Coated silica cloth
to 980 °C
Silica fabric with a red silicone coating, for direct heat in steel mills and slag pits. Excellent chemical resistance.
Full material specifications
Close-up of a chrome hydraulic cylinder rod on yellow heavy equipment

Request a quote

Fill in your cylinder details and we'll come back to you with a price. Fields marked * are required.

Your details

Machine and application

For example mining, forestry, abrasive dust, salt spray.

For example boom lift, bucket tilt, steering.

Dimensions

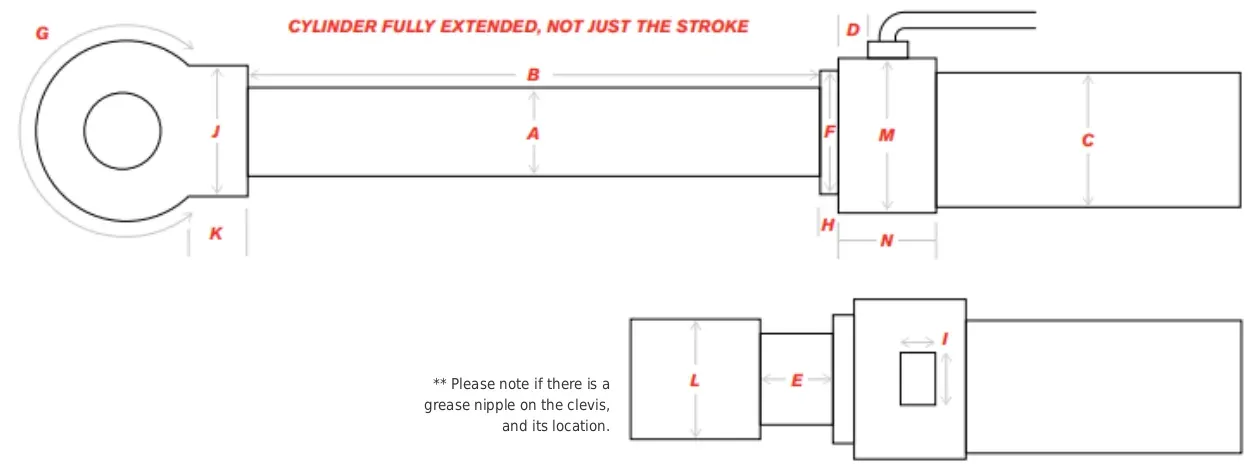

Measuring diagram of a hydraulic cylinder, with dimensions A to N marked on the rod, clevis, head and tube.

Measure B with the cylinder fully extended, not just the stroke.

Cylinder type

Rod diameter

Extended length, cylinder fully extended

Tube OD, including the rods on a tie rod cylinder

Length to front port or pipework

Rod closed stickout

Head OD

Clevis width

Head stickout length

Port or pipework, length × width

Clevis base width

Clevis base length

Clevis height

Tie rod and mill type only

Tie rod and mill type only

Is there a grease nipple on the clevis?

Photos and notes

Anything else we should know.

Photos and attachments

Photos of the cylinder and its mounting points help us get it right. Up to 5 files, 10 MB each and 20 MB in total. JPG, PNG, HEIC or PDF.

    Your request and photos go to the Hydrapower sales team and are kept on file, privately, so we can quote and follow up. We don't use them for anything else.
